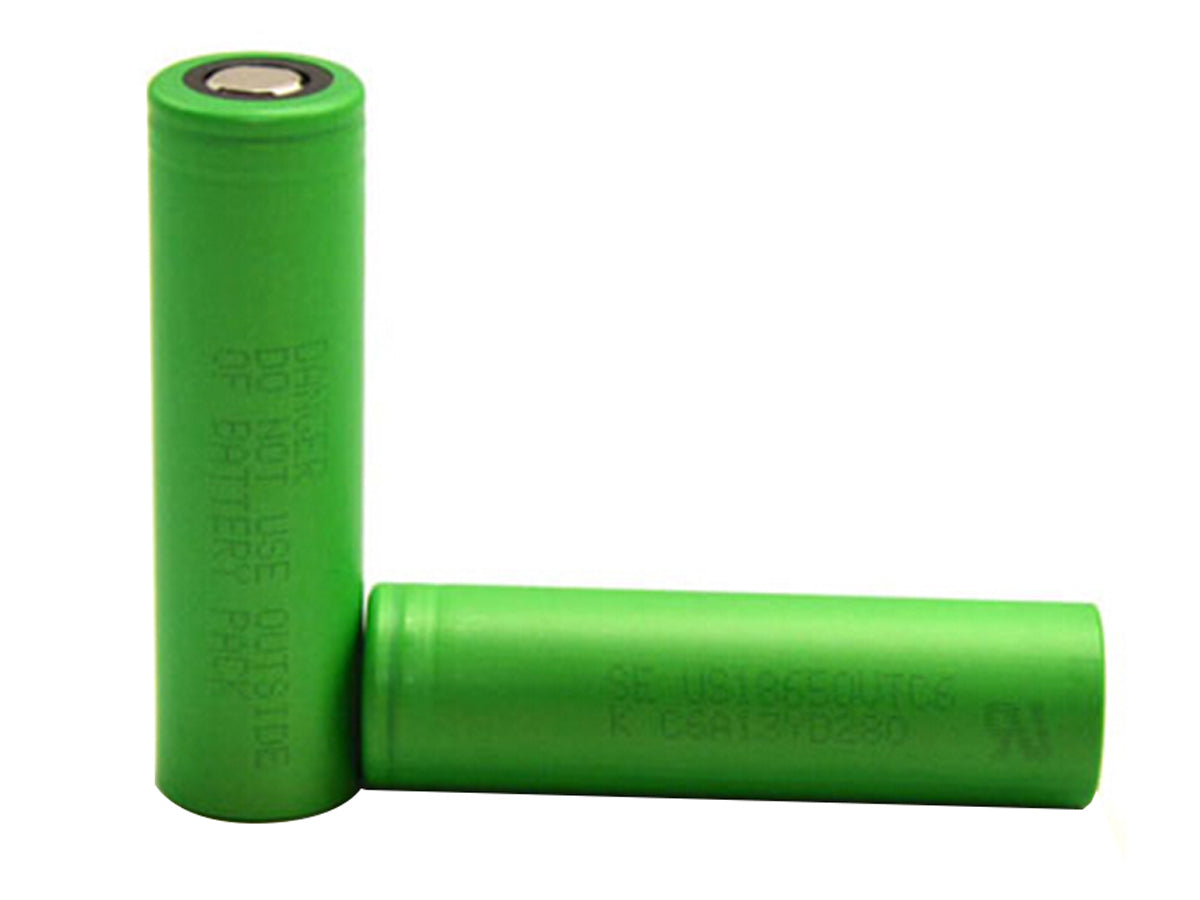

Sony VTC4 18650 2100 mAh Flat Top

Sony


Regular price $10.95
Sony VTC4 18650 2100 mAh Flat Top
This is a hard hitting 23A continuous battery that exceeds its 2000mAh rating. They were purchased from www.illumn.com and are are identical in appearance and performance to genuine VTC4's. They run much too hot to be rated at 30A continuous but their temperature at 23A is the same as the VTC3 and VTC5 at their ratings. The VTC4 hits harder than the LG HB series of batteries but it runs hotter.



Continuous-Current Test Results



Pulsed-Current Test Results
These tests are done to show the performance of the cell at higher pulsed current levels. If you are running your mod at these levels be aware that you risk overheating, and possibly venting, the battery if there is a malfunction or accidental pressing of your mechanical mod's button.
  • Brand: Sony Energy
  • Model: US18650VTC4
  • Size: 18650
  • Nominal Capacity: 2100mAh
  • Nominal Voltage: 3.6V
  • Maximum Voltage: 4.2V
  • Discharge Current: 20A Maximum Continuous with 80deg C cutoff, 30A Maximum Continuous with 100deg C cutoff
  • Style: Flat Top
  • Protected: NO, UNPROTECTED
  • Approximate Dimensions: 18.20mm x 64.86mm
  • Approximate Weight: 45.3g
